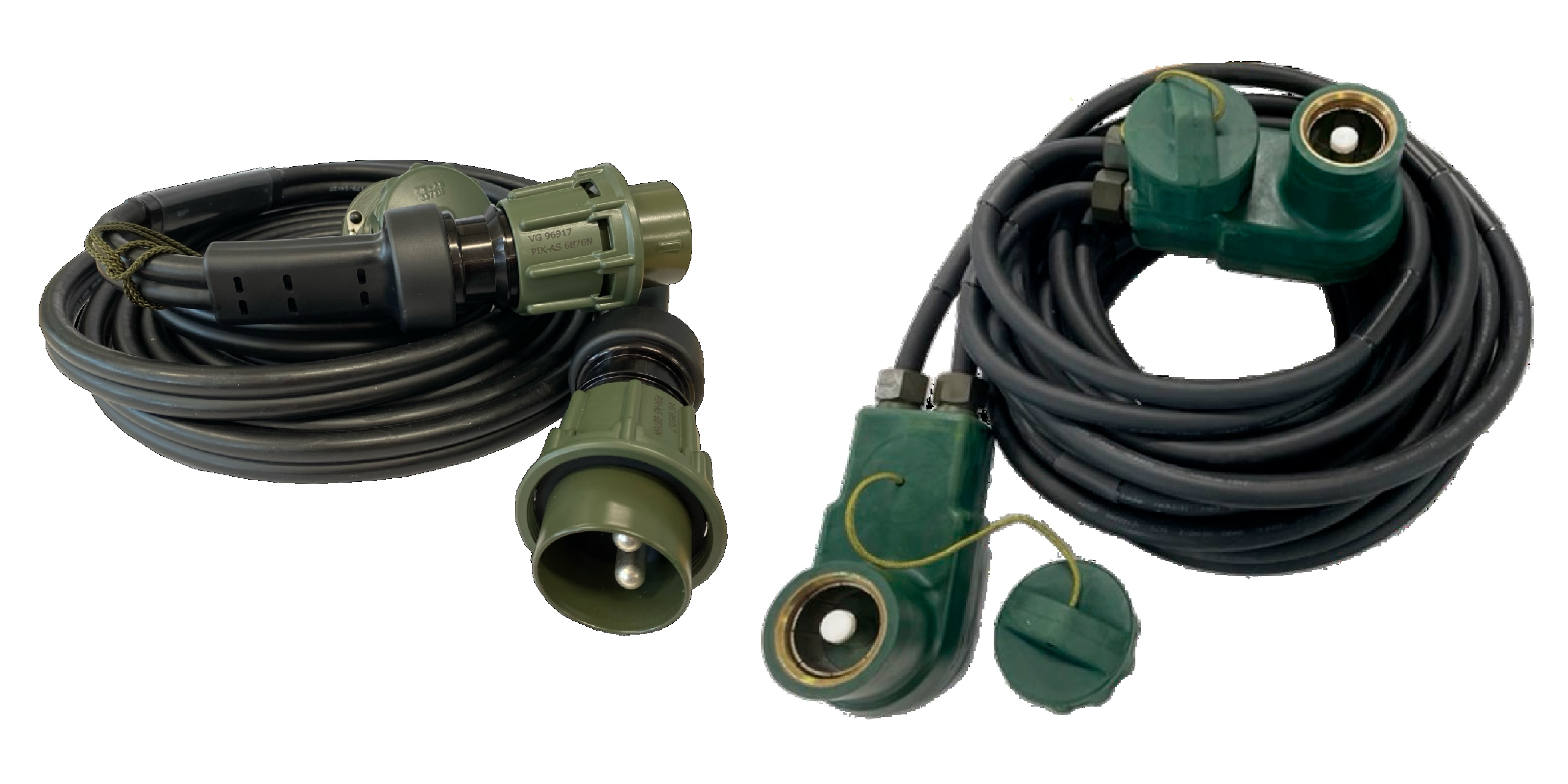

Technical Characteristics & Applications
STANAG 4074 slave receptacles provide a standardized solution for external starting of military vehicles while ensuring interoperability across different vehicle platforms.
They are used in wheeled and tracked military vehicles, in applications requiring high reliability and resistance to harsh environmental operating conditions.

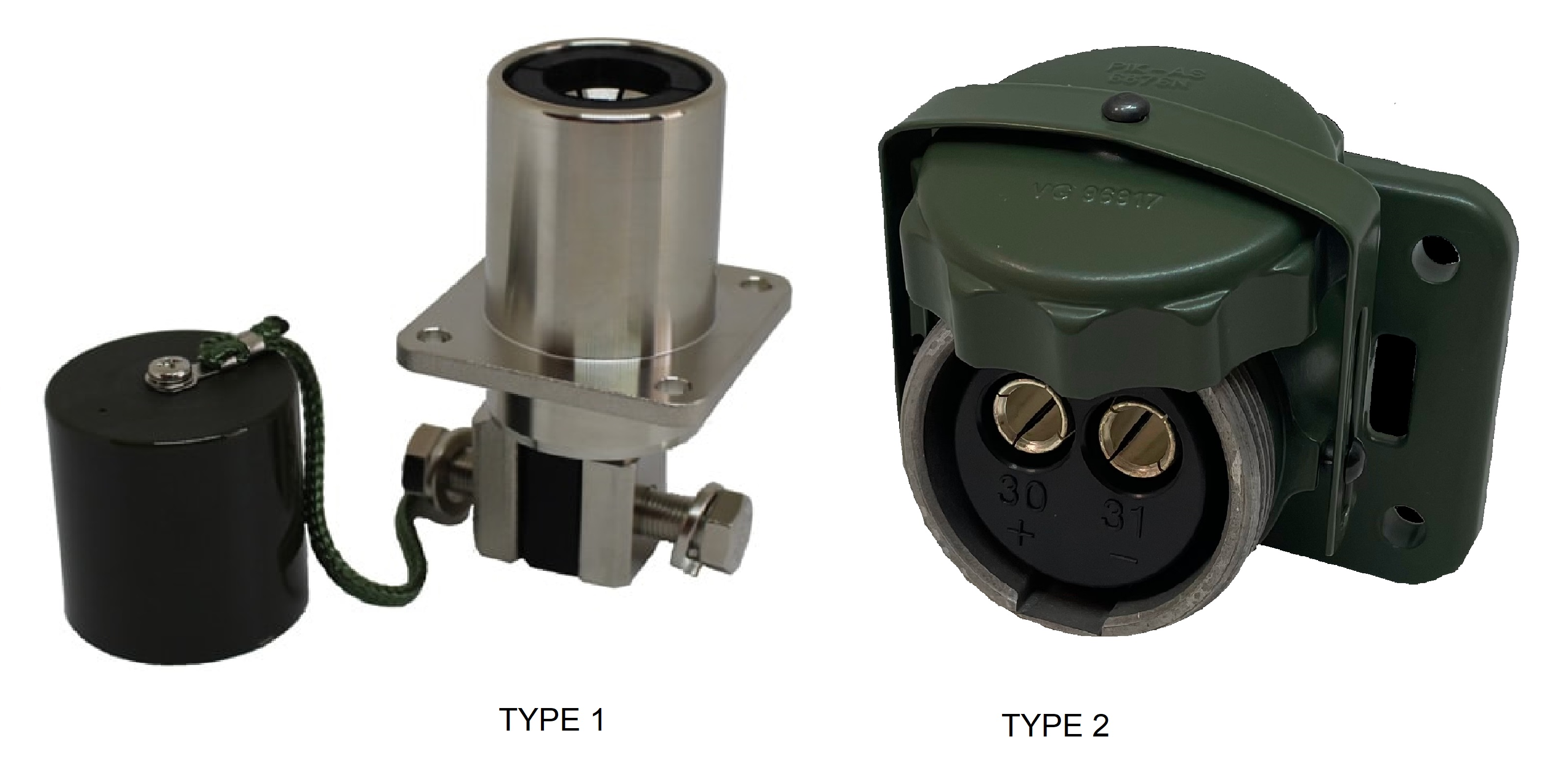

Types & Configurations
STANAG 4074 slave receptacles are available in several design variants, developed to meet military standard requirements and interoperability criteria.
Type 1 – standard STANAG 4074 connectors for NATO vehicle platforms
Type 2 (VG96917) – STANAG 4074-compatible variants compliant with the German military VG standard

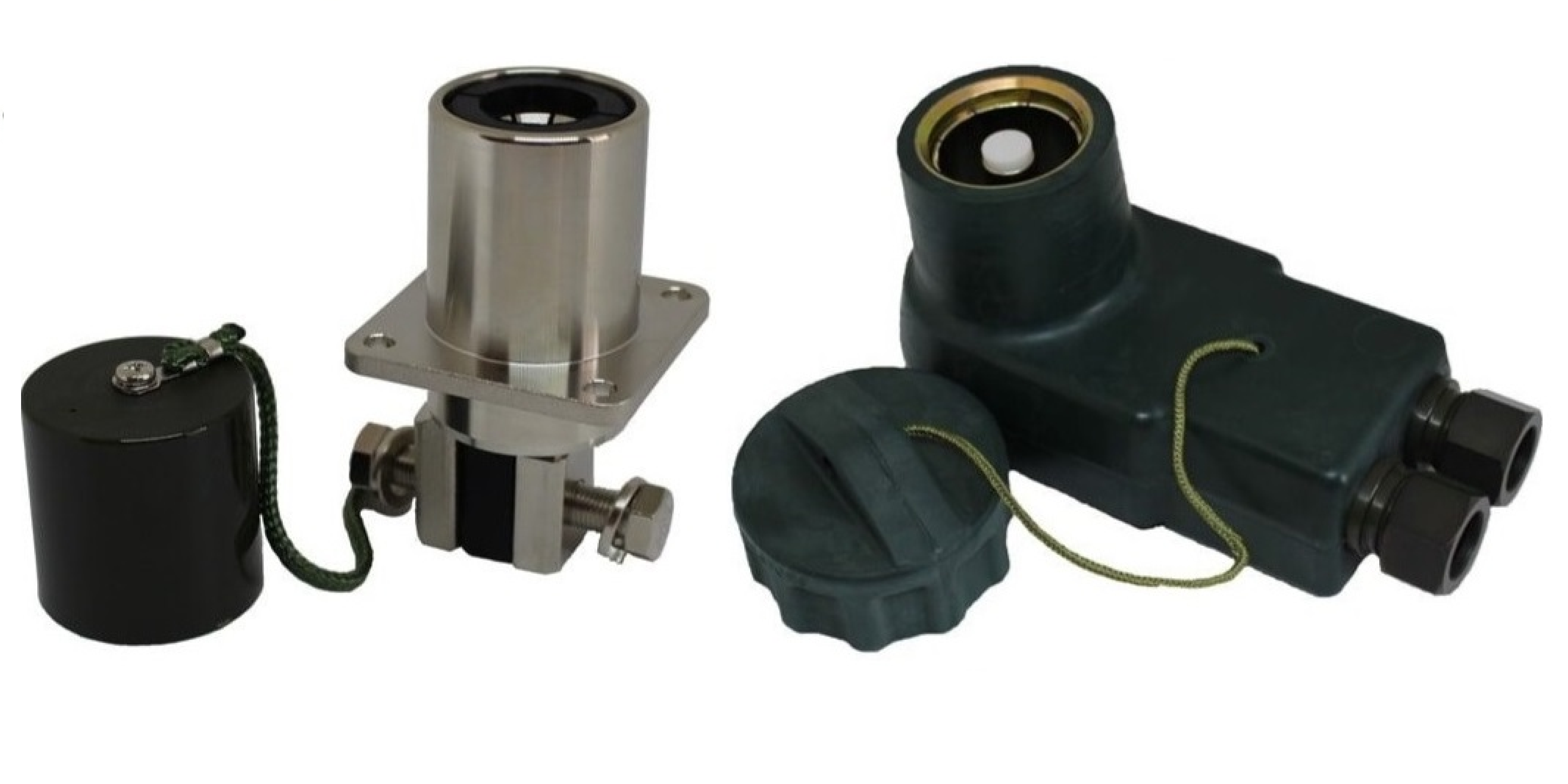

Standards & Compatibility
The connectors comply with the requirements of STANAG 4074, which defines interoperability of external starting systems for NATO military vehicles.
Versions compliant with the VG96917 standard are also available, ensuring compatibility with European military electrical systems.
| Image | Cat. number | Name | VG | NSN | Parameters | Files | Add |
|---|---|---|---|---|---|---|---|
|
90100299 | Socket STANAG 4074 | — | 5935-01-097-9974 |
Max Current
1000 A (max. 6 min),
voltage
24 VDC
contact size
70mm²
temperature range
-55°C to +100°C
|
|
|
|
90100222 | Connector STANAG 4074, Type1 | — | 5935-00-567-0128 |
Max Current
1000 A (max. 6 min),
voltage
24 VDC
contact size
70mm²
temperature range
-55°C to +100°C
|
|
|
|
74091005 | 2p 24V Plug | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
35mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
74091003 | 2p 24V Plug | — | 5935-12-306-9243 |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
50mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74091015 | 2p 24V Plug | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
50mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74091013 | 2p 24V Plug | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
35mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74091002 | 2p 24V Plug | VG96917E001A | 5935-12-322-9791 |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
35mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74091012 | 2p 24V Plug | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
50mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74091016 | 2p 24V Plug | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
50mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74091004 | 2p 24V Plug | VG96917F001 | 5935-12-361-1646 |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
35mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74091014 | 2p 24V Plug | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
50mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
74101008 | 2p 24V Socket | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
35mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74101005 | 2p 24V Socket | VG96917A002A | 5935-12-308-5019 |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
50mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74101006 | 2p 24V Socket | VG96917A001A | 5935-12-307-1277 |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
35mm²+50mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74101003 | 2p 24V Socket | VG96917A003A | 5935-12-338-8907 |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
74101051 | VG96917 with harness | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
74092001 | Connecting cable with 2 moulded plugs and 1 coupler VG96917 | VG96927T012A001 | 6150-12-309-8025 |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-40°C to +85°C
cable lenght
3500 mm
|
|
|
|
|
74092002 | Connecting cable with 2 moulded plugs and 1 coupler VG96917 | VG96927T012A002 | 6150-12-325-0952 |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-40°C to +85°C
cable lenght
6000 mm
|
|
|
|
|
74092003 | Connecting cable with 2 moulded plugs and 1 coupler VG96917 | VG96927T012A003 | 6150-12-325-0953 |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-40°C to +85°C
cable lenght
10000 mm
|
|
|
|
|
74092004 | Connecting cable with 2 moulded plugs and 1 coupler VG96917 | VG96927T012A004 | 6150-12-150-8185 |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-40°C to +85°C
cable lenght
15000 mm
|
|
|
|
|
74092005 | Connecting cable with 2 moulded plugs and 1 coupler VG96917 | VG96927T012A005 | 6150-12-325-0954 |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-40°C to +85°C
cable lenght
20000 mm
|
|
|
|
|
74092006 | Connecting cable with 2 moulded plugs and 1 coupler VG96917 | VG96927T012A006 | 6150-12-165-3127 |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-40°C to +85°C
cable lenght
25000 mm
|
|
|
|
|
74092007 | Connecting cable with 2 moulded plugs and 1 coupler VG96917 | VG96927T012A007 | 6150-12-350-6750 |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-40°C to +85°C
cable lenght
30000 mm
|
|
|
|
74094001 | Connecting cable with 2 plugs with screw ring and 1 coupler with protection cap | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
3500 mm
|
|
|
|
|
74094002 | Connecting cable with 2 plugs with screw ring and 1 coupler with protection cap | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
6000 mm
|
|
|
|
|
74094003 | Connecting cable with 2 plugs with screw ring and 1 coupler with protection cap | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
8000 mm
|
|
|
|
|
74094004 | Connecting cable with 2 plugs with screw ring and 1 coupler with protection cap | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
10000 mm
|
|
|
|
|
74094005 | Connecting cable with 2 plugs with screw ring and 1 coupler with protection cap | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
15000 mm
|
|
|
|
|
74094006 | Connecting cable with 2 plugs with screw ring and 1 coupler with protection cap | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
20000 mm
|
|
|
|
|
74094007 | Connecting cable with 2 plugs with screw ring and 1 coupler with protection cap | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
25000 mm
|
|
|
|
74095001 | Connecting cable with 2 plugs and 1 coupler | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
3500 mm
|
|
|
|
|
74095002 | Connecting cable with 2 plugs and 1 coupler | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
6000 mm
|
|
|
|
|
74095003 | Connecting cable with 2 plugs and 1 coupler | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
8000 mm
|
|
|
|
|
74095004 | Connecting cable with 2 plugs and 1 coupler | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
10000 mm
|
|
|
|
|
74095005 | Connecting cable with 2 plugs and 1 coupler | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
15000 mm
|
|
|
|
|
74095006 | Connecting cable with 2 plugs and 1 coupler | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
20000 mm
|
|
|
|
|
74211000 | Connecting cable with 2 plugs and 1 coupler | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
3500 mm
|
|
|
|
|
74211001 | Connecting cable with 2 plugs and 1 coupler | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
6000 mm
|
|
|
|
|
74211002 | Connecting cable with 2 plugs and 1 coupler | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
10000 mm
|
|
|
|
|
74211003 | Connecting cable with 2 plugs and 1 coupler | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
15000 mm
|
|
|
|
99560060 | 2p 24V Spiral cable | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-40°C to +85°C
cable lenght
4000 mm
|
|
|
|
74200004 | Jumper cables, 50 mm² | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-20°C to +85°C
cable lenght
3500 mm
|
|
|
|
|
74200005 | Jumper cables, 50 mm² | — | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-46°C to +85°C
cable lenght
6000 mm
|
|
|
|
74200011 | Intervehicle power cable 70 mm² | — | 6150-01-022-6004 |
Max Current
1000 A (max. 6 min),
voltage
24 VDC
temperature range
-25°C to +100°C
cable lenght
6000 mm
|
|
|
|
74141002 | 2p 24V Coupler VG96917 | VG96917D001 | 5935-12-328-6768 |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74140010 | 2p 24V Coupler VG96917 | former VG96917C | 5935-12-148-9716 |
Max Current
300 A (30 sec)
voltage
24 VDC
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
30001750 | Adapter for Intervehicle power cables | — | — |
voltage
24 VDC
|
|
|
|
99999126 | STANAG 4074 adapter | — | 5935-00-322-8959 |
voltage
24 VDC
|
|
|
|
36000456 | STANAG Adapter from 1p female to 2p male contacts | — | — |
voltage
24 VDC
|
|
|
|
|
74090009 | 2p 24V Crimp/soldering contact 35mm² | VG96917P35 | 5999-12-187-6686 |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
35mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74090010 | 2p 24V Crimp/soldering contact 50mm² | VG96917 | — |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
50mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74230014 | Crimp cable lug for 90100222 | — | — |
voltage
24 VDC
contact size
70mm²
|
|
|
|
|
74100012 | 2p 24V Crimp/soldering contacts 35mm² | VG96917S35 | 5999-12-341-6353 |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
35mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74100010 | 2p 24V Crimp/soldering contacts 50mm² | VG96917S50 | 5999-12-335-5654 |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
50mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74100011 | 2p 24V Crimp/soldering contacts 35+50mm² | VG96917S35-50 | 5999-12-304-8049 |
Max Current
300 A (30 sec)
voltage
24 VDC
contact size
35mm²+50mm²
contacts
silver plated
temperature range
-46°C to +85°C
|
|
|
|
|
74520017 | Heat shrinkable boot | — | — | — |
|
Catalogues for download
Requests for quotation are processed exclusively in a B2B model. The company does not conduct retail sales.
Send request for quotation
