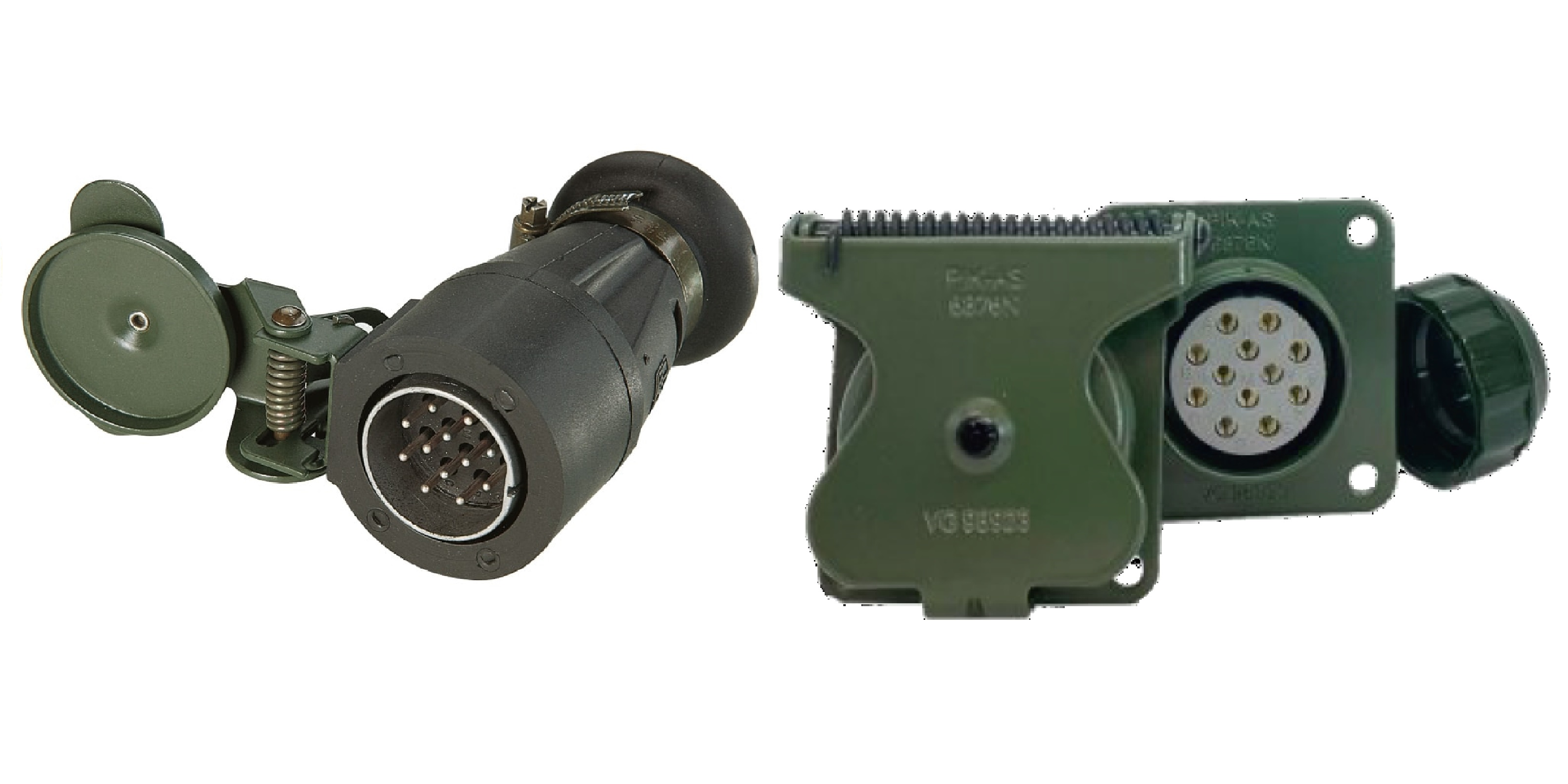

Technical Characteristics & Applications
STANAG 4007 vehicle-to-trailer connectors are a critical component of military electrical systems, providing secure and reliable interconnection between vehicle electrical systems and trailer or towed platform installations.
They ensure electrical interoperability, uninterrupted power distribution and control signal continuity in demanding operational environments, including military transport and logistics application

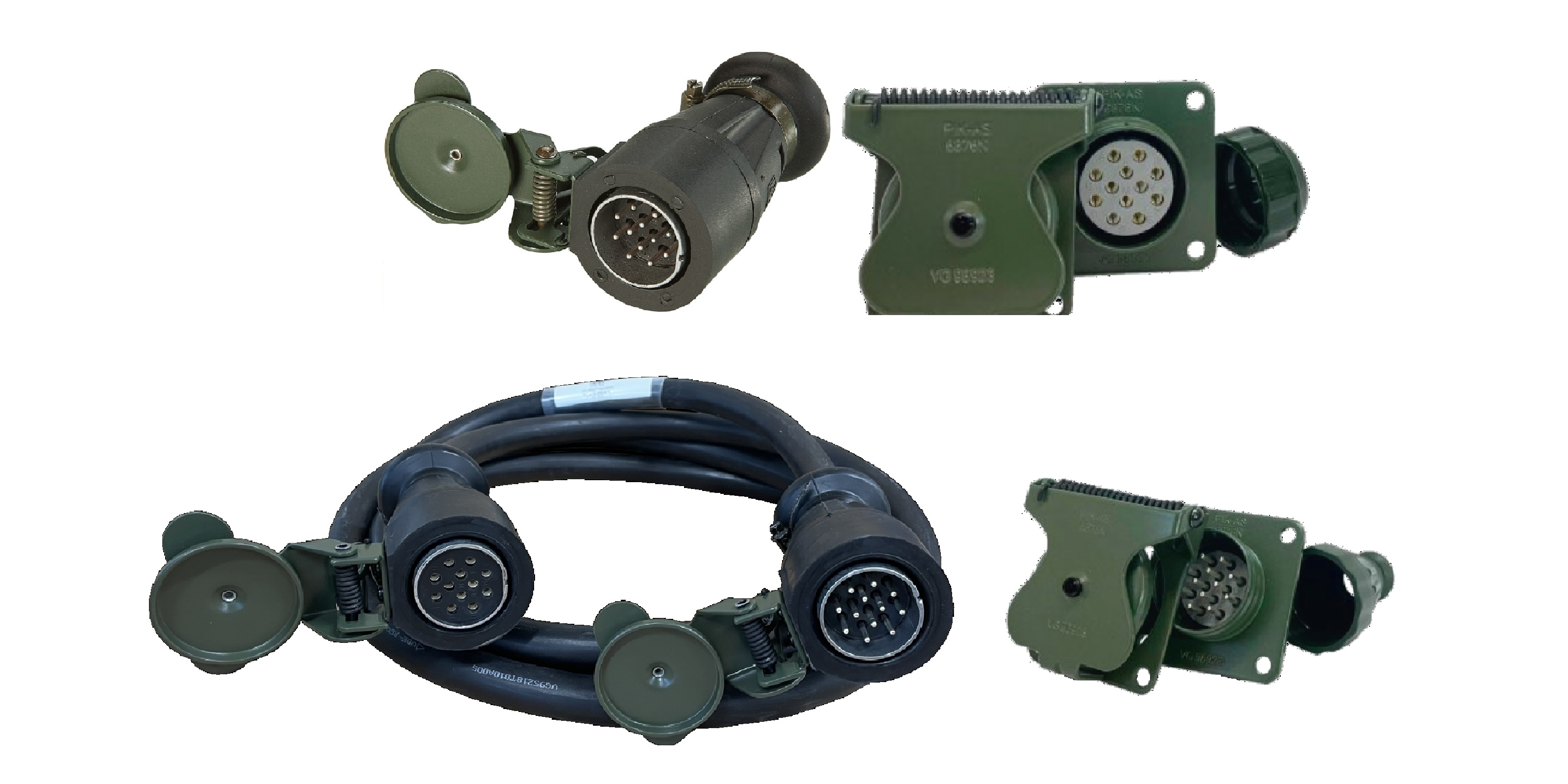

Types & Configurations
STANAG 4007 connectors are available in multiple design variants and pin configurations compliant with the standard, enabling integration with specific vehicle platforms and trailer or towed equipment systems.
Available configurations support power distribution, lighting circuits and control signal transmission while ensuring interoperability across NATO military vehicle systems.

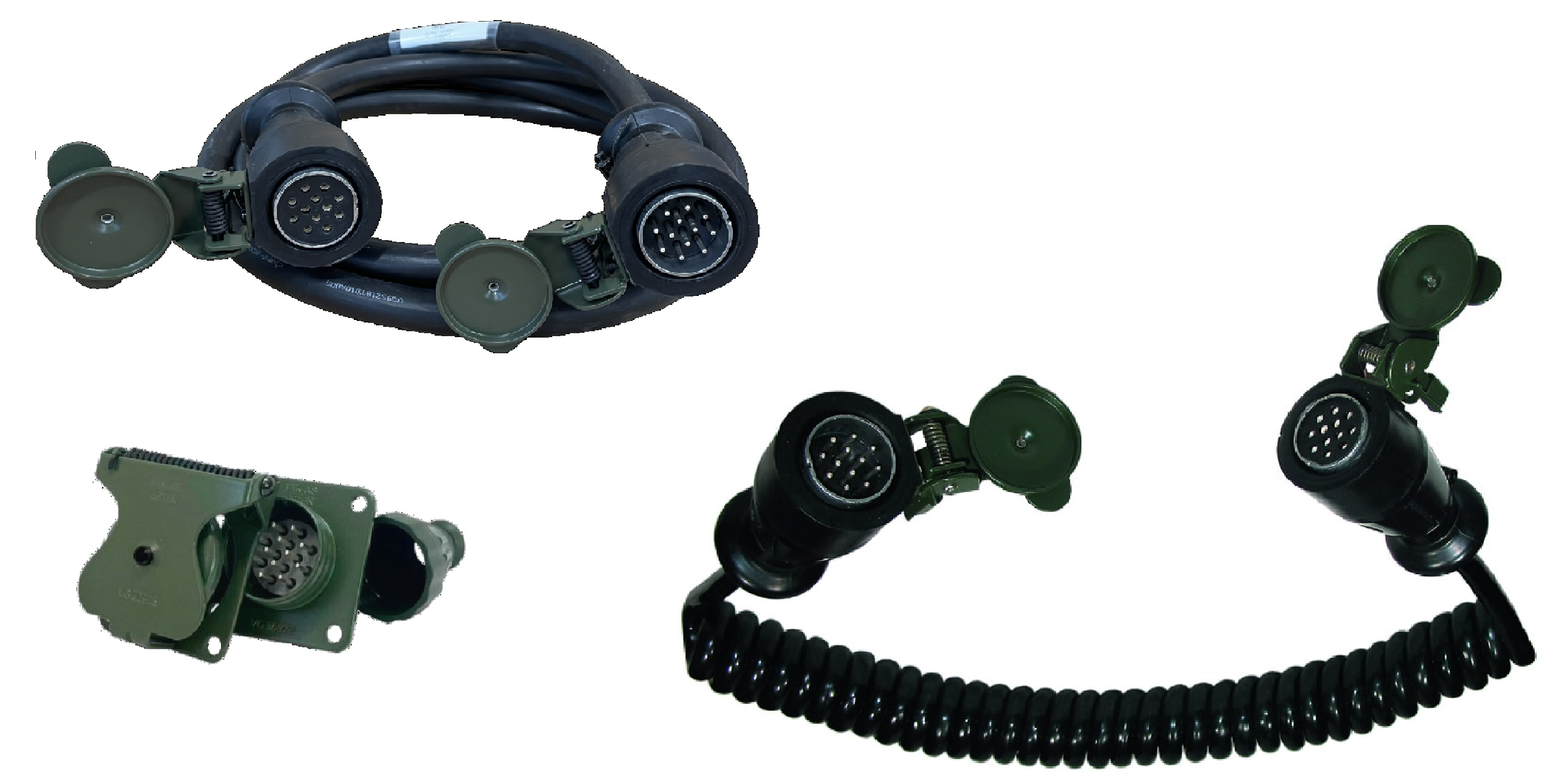

Standards & Compatibility
Vehicle-to-trailer connectors are designed in accordance with STANAG 4007 requirements, ensuring compatibility with electrical systems used across NATO military vehicle platforms.
Their construction provides environmental and mechanical durability for reliable operation under harsh operating conditions while meeting military and industrial standards.
| Image | Cat. number | Name | VG | NSN | Parameters | Files | Add |
|---|---|---|---|---|---|---|---|
|
74111003 | 12p plug | VG96923B1-12P | 5935-12-188-1750 |
rated current
15 A
voltage
24 VDC
cable
Ø 23,
contacts
male
temperature range
-40 °C to +85 °C
|
|
|
|
|
74111013 | 12p plug | VG96923B2-12P | 5935-12-350-1294 |
rated current
15 A
voltage
24 VDC
cable
Ø 17,
contacts
male
temperature range
-40 °C to +85 °C
|
|
|
|
|
74111002 | 12p plug | VG96923B1-12S | 5935-12-127-8050 |
rated current
15 A
voltage
24 VDC
cable
Ø 23,
contacts
female
temperature range
-40 °C to +85 °C
|
|
|
|
|
74111012 | 12p plug | VG96923B2-12S | 5935-12-350-1295 |
rated current
15 A
voltage
24 VDC
cable
Ø 17,
contacts
female
temperature range
-40 °C to +85 °C
|
|
|
|
74121003 | 12 socket | VG96923A-12P | 5935-12-127-4833 |
rated current
15 A
voltage
24 VDC
contacts
male
temperature range
-40 °C to +85 °C
|
|
|
|
|
74121002 | 12 socket | VG96923A-12S | 5935-12-127-4831 |
rated current
15 A
voltage
24 VDC
contacts
female
temperature range
-40 °C to +85 °C
|
|
|
|
74123003 | 12 socket | VG96923L001 | 5935-12-148-3053 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male
temperature range
-40 °C to +85 °C
|
|
|
|
|
74123002 | 12 socket | VG96923L002 | 5935-12-128-1833 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
female
temperature range
-40 °C to +85 °C
|
|
|
|
74123013 | 12 socket | VG96923L003 | 5935-12-379-5149 |
rated current
15 A
voltage
24 VDC
contacts
male
temperature range
-40 °C to +85 °C
|
|
|
|
|
74123012 | 12 socket | VG96923L004 | 5935-12-171-4800 |
rated current
15 A
voltage
24 VDC
contacts
female
temperature range
-40 °C to +85 °C
|
|
|
|
74122001 | Cover cap for 12p socket | VG96923F | 5935-12-122-4463 |
temperature range
-40 °C to +85 °C
|
|
|
|
74120019 | Cable bush for cables | VG96923H | 5975-12-122-4462 | — |
|
|
|
|
74124001 | Screw cap set with sealing unit | VG96923K | 5975-12-172-1656 | — |
|
|
|
|
74124003 | Mounting set M6 | — | — | — |
|
|
|
74125003 | 12p 24V Socket with cable | — | — |
rated current
15 A
voltage
24 VDC
cable
Ölflex
contacts
male
temperature range
-40 °C to +85 °C
cable lenght
1000 mm
|
|
|
|
|
74125001 | 12p 24V Socket with cable | VG96927T022B008 | 6150-12-141-6738 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A004
contacts
female
temperature range
-40 °C to +85 °C
cable lenght
1000 mm
|
|
|
|
|
74125002 | 12p 24V Socket with cable | VG96927T022B009 | 6150-12-324-9610 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A004
contacts
female
temperature range
-40 °C to +85 °C
cable lenght
2500 mm
|
|
|
|
|
74125004 | 12p 24V Socket with cable | — | — |
rated current
15 A
voltage
24 VDC
cable
Ölflex
contacts
female
temperature range
-40 °C to +85 °C
cable lenght
1000 mm
|
|
|
|
|
74125005 | 12p 24V Socket with cable | — | — |
rated current
15 A
voltage
24 VDC
cable
Ölflex
contacts
female
temperature range
-40 °C to +85 °C
cable lenght
2500 mm
|
|
|
|
74115001 | 12p 24V Connecting cable with plug | VG96927T022B001 | 6150-12-350-6742 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male
temperature range
-40 °C to +85 °C
cable lenght
1200 mm
|
|
|
|
|
74115002 | 12p 24V Connecting cable with plug | VG96927T022B002 | 6150-12-142-5717 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male
temperature range
-40 °C to +85 °C
cable lenght
1700 mm
|
|
|
|
|
74115003 | 12p 24V Connecting cable with plug | VG96927T022B003 | 6150-12-350-6743 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male
temperature range
-40 °C to +85 °C
cable lenght
2200 mm
|
|
|
|
|
74115004 | 12p 24V Connecting cable with plug | VG96927T022B004 | 6150-12-139-3461 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male
temperature range
-40 °C to +85 °C
cable lenght
2700 mm
|
|
|
|
|
74115005 | 12p 24V Connecting cable with plug | VG96927T022B005 | 6150-12-142-5649 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male
temperature range
-40 °C to +85 °C
cable lenght
3200 mm
|
|
|
|
|
74115006 | 12p 24V Connecting cable with plug | VG96927T022B006 | 6150-12-141-5248 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male
temperature range
-40 °C to +85 °C
cable lenght
3700 mm
|
|
|
|
|
74115007 | 12p 24V Connecting cable with plug | VG96927T022B007 | 6150-12-350-6744 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male
temperature range
-40 °C to +85 °C
cable lenght
4200 mm
|
|
|
|
74115011 | 12p 24V Connecting cable with 2 plugs | VG96927T022A001 | 6150-12-350-6738 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male/female
temperature range
-40 °C to +85 °C
cable lenght
1300 mm
|
|
|
|
|
74115012 | 12p 24V Connecting cable with 2 plugs | VG96927T022A002 | 6150-12-350-6739 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male/female
temperature range
-40 °C to +85 °C
cable lenght
1800 mm
|
|
|
|
|
74115013 | 12p 24V Connecting cable with 2 plugs | VG96927T022A003 | 6150-12-350-6740 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male/female
temperature range
-40 °C to +85 °C
cable lenght
2300 mm
|
|
|
|
|
74115014 | 12p 24V Connecting cable with 2 plugs | VG96927T022A004 | 6150-12-145-2486 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male/female
temperature range
-40 °C to +85 °C
cable lenght
2800 mm
|
|
|
|
|
74115015 | 12p 24V Connecting cable with 2 plugs | VG96927T022A005 | 6150-12-331-1448 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male/female
temperature range
-40 °C to +85 °C
cable lenght
3300 mm
|
|
|
|
|
74115016 | 12p 24V Connecting cable with 2 plugs | VG96927T022A006 | 6150-12-350-6741 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male/female
temperature range
-40 °C to +85 °C
cable lenght
3800 mm
|
|
|
|
|
74115017 | 12p 24V Connecting cable with 2 plugs | VG96927T022A007 | 6150-12-125-1434 |
rated current
15 A
voltage
24 VDC
cable
VG95218T010A005
contacts
male/female
temperature range
-40 °C to +85 °C
cable lenght
4300 mm
|
|
|
|
74115202 | 12p 24V Spiral cable | — | — |
rated current
15 A
voltage
24 VDC
contacts
male/female
temperature range
-40 °C to +85 °C
cable lenght
4000 mm
|
|
|
|
|
99910035 | 12p 24V Spiral cable | — | — |
rated current
15 A
voltage
24 VDC
contacts
male/female
temperature range
-40 °C to +85 °C
cable lenght
4000 mm
|
|
|
|
PA96923G-12P | 12p 24V plug | VG96923G-12P | 5935-12-145-4491 |
voltage
24 VDC
contacts
male
|
|
|
|
|
PA96923G-12S | 12p 24V plug | VG96923G-12S | 5935-12-314-1543 |
voltage
24 VDC
contacts
female
|
|
